Introduction

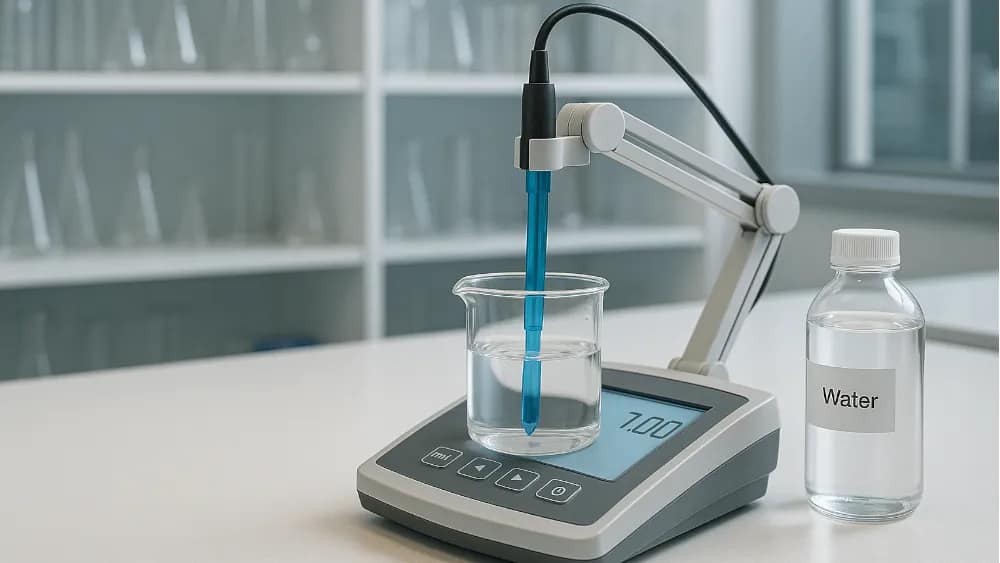

Every reliable pH reading begins with proper pH meter calibration. A meter is only as good as its last calibration, since electrodes drift with time, temperature, and use. Many first-timers wonder about calibrating pH meter with water, but distilled water can’t hold a fixed pH—carbon dioxide from the air drops its value to around 5.7, making it useless as a reference point. That’s why scientists rely on buffer solution calibration and follow strict calibration standards for pH meter accuracy. Whether you’re running laboratory pH measurement, checking crops with a portable pH meter calibration, or monitoring fish tanks with aquarium water pH calibration, the same rules apply. Proper calibration sets the slope and offset in calibration close to the ideal Nernst value of 59 mV per pH unit at 25 °C, giving confidence in testing pH in water samples for drinking, soil, or hydroponics. Good practice also includes glass electrode care, routine rinsing, and storing the probe in an electrode storage solution to prevent dehydration and error. Skipping these basics risks pH measurement errors, wasted time, and poor instrument accuracy and reliability. In short, knowing how to calibrate pH probe correctly is not just maintenance—it’s the foundation of accurate water quality testing and every form of scientific instrument calibration that depends on trustworthy data.

Key Takeaways

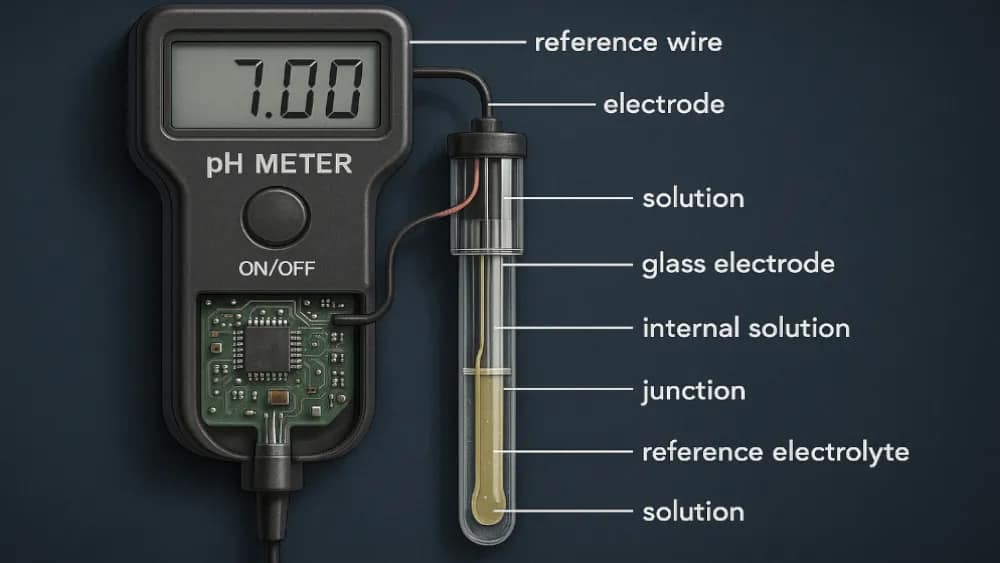

Fast Primer: How pH Meters “Think”

A pH meter doesn’t think like us, but it does follow rules. At its core, it’s a voltmeter tuned to hydrogen ion activity. The glass electrode senses hydrogen ions in a sample, while a reference electrode holds steady in its own electrolyte. Together, they generate a millivolt signal that changes about 59 mV per pH unit at 25 °C, known as the Nernst slope. That slope and its offset are why calibration is needed. With time, electrode drift shifts readings, so the meter must be reset against known calibration standards for pH meters. The usual pH meter calibration steps involve buffers at pH 7, pH 4, and sometimes pH 10, letting the instrument anchor its line of response. Using distilled water for calibration doesn’t work because dissolved CO₂ changes its pH unpredictably, and it lacks the ions needed for stable readings. That’s why buffer solution calibration beats “calibrating a pH meter with water” every time. Good calibration accuracy and precision also depend on electrode care: rinsing with deionized water, never wiping the bulb, and storing it in an electrode storage solution to avoid dehydration. Whether in laboratory pH measurement, aquarium water pH calibration, hydroponics pH calibration, or soil and water testing pH meters, the same rule applies—without proper calibration, instrument accuracy and reliability fail, and small drifts can cause big pH measurement errors in water quality testing or food safety checks. Think of calibration as teaching the instrument where “neutral” really is, so every reading after reflects calibration best practices and true scientific instrument calibration.

Concept (how the meter “thinks”)	What it means	Typical numbers / specs	Why it matters	Sources
Nernst response (glass electrode acts like a tiny battery)	The meter converts the millivolt signal from the glass membrane—set by H⁺ activity—into pH using the Nernst equation.	Theoretical slope at 25 °C ≈ 59.16 mV per pH; slope varies with T via 2.303·RT/F.	The closer your measured slope is to theory, the more “textbook” your electrode is behaving.	(Metrohm)
Isopotential point (zero point)	The pH where temperature has no effect on potential and reading crosses 0 mV.	Typically pH 7.00 at 0 mV by design.	Calibrate around pH 7 to anchor the zero; helps when samples vary in temperature.	(Emerson)
Temperature compensation (ATC)	The meter adjusts readings because the Nernst slope changes with temperature.	ATC uses a temperature probe; e.g., slope ~60.15 mV/pH at 30 °C vs. 59.16 mV/pH at 25 °C.	Without ATC, identical samples at different temperatures read different pH values.	(Metrohm)
Electrode stack (measuring + reference)	A pH half-cell (glass) compared against a stable reference half-cell (Ag/AgCl in KCl).	Reference element maintains constant potential; junction lets electrolyte contact sample.	Stable reference = stable readings; junction issues = drift and noise.	(Hach)
Input impedance of the meter	The meter must not “load” the tiny electrode signal.	≥10¹² Ω typical for lab meters.	Too low = slope loss, noisy/slow readings.	(Hanna Instruments Canada)
Calibration strategy (how meters learn your electrode)	Fit a line (offset + slope) to buffers that bracket sample pH; include pH 7 when possible.	2–3 points common; buffers near sample pH and ~1–4 pH units apart.	Good bracketing reduces extrapolation errors and catches slope/offset issues.	(Thermo Fisher Documents)
Expected accuracy & resolution (bench meters)	Instrument spec limits, assuming good electrode and technique.	Typical bench meter: ±0.01 pH resolution/accuracy; premium models offer up to ±0.002 pH with 0.001 resolution.	Sets realistic expectations; tells you whether small differences are meaningful.	(MT)
Measurement range (instrument capability)	Limits for readable pH/mV/temperature.	Example ranges: pH −2.00 to 16/20.00, temp 0–100 °C, mV ±2000 mV (varies by model).	Ensures your samples and buffers fall within meter capacity.	(MT)

Why calibration is non-negotiable: Every electrode ages in its own way. The glass membrane develops tiny changes. The reference junction can build up deposits. The internal electrolyte can shift in strength. When you run calibration with known buffer solutions, you tell the meter what voltage matches each pH value at that moment. This step corrects for normal wear and drift. Skip calibration, and the meter has to guess. Do it properly, and you give it clear reference points. That allows it to report accurate pH values for every sample you test.

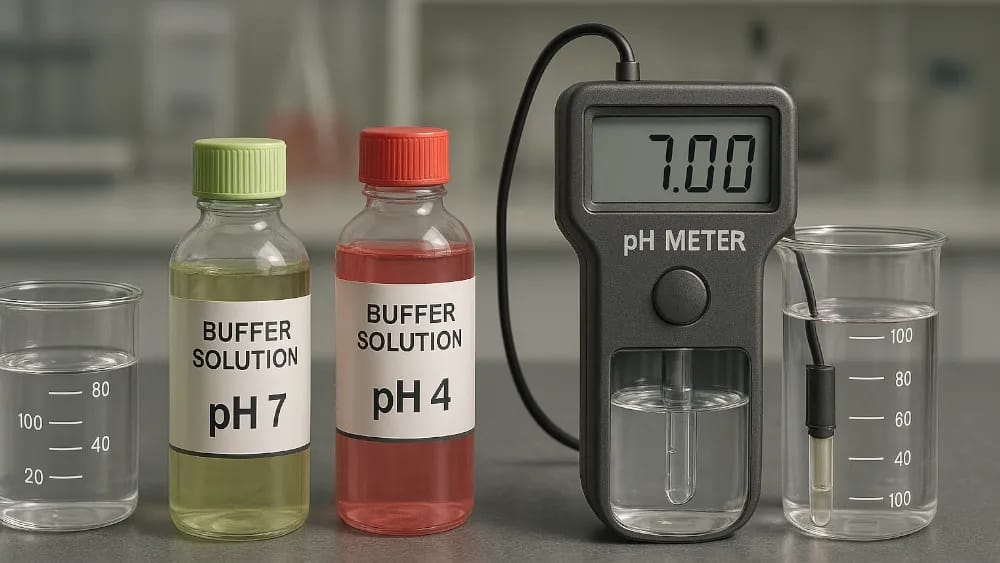

What You’ll Need (And Why)

Gather the right materials before you begin. This helps avoid interruptions and supports smooth calibration success.

Essential Calibration Materials

Standard Buffer Solutions (the actual calibration agents):

Choose pre-made, NIST-traceable buffer solutions with clear expiration dates. This helps protect your calibration accuracy. Our pH meter calibration solution kit includes everything you need. The color-coded bottles help prevent mix-ups and keep your buffer solutions organized.

High-Purity Rinsing Water:

Never use tap water. It contains dissolved minerals, chlorine, and other substances with an unpredictable pH. These can contaminate your buffer solutions and reduce calibration accuracy.

Supporting Equipment:

Buffer Solution Selection Strategy

Sample pH Range	Required Buffers	Calibration Type
5.0 – 9.0 (near neutral)	pH 7.0 + pH 4.0	Two-point calibration
3.0 – 11.0 (acidic to alkaline)	pH 4.0 + pH 7.0 + pH 10.0	Three-point calibration (recommended)
< 5.0 (highly acidic)	pH 4.0 + pH 7.0	Two-point calibration
> 9.0 (highly alkaline)	pH 7.0 + pH 10.0	Two-point calibration

🎯 Choose buffer solutions that bracket your expected sample pH range. Pick points that sit just below and above your target pH values. If you test across the full pH spectrum, use a three-point calibration. It gives better accuracy and stronger measurement control.

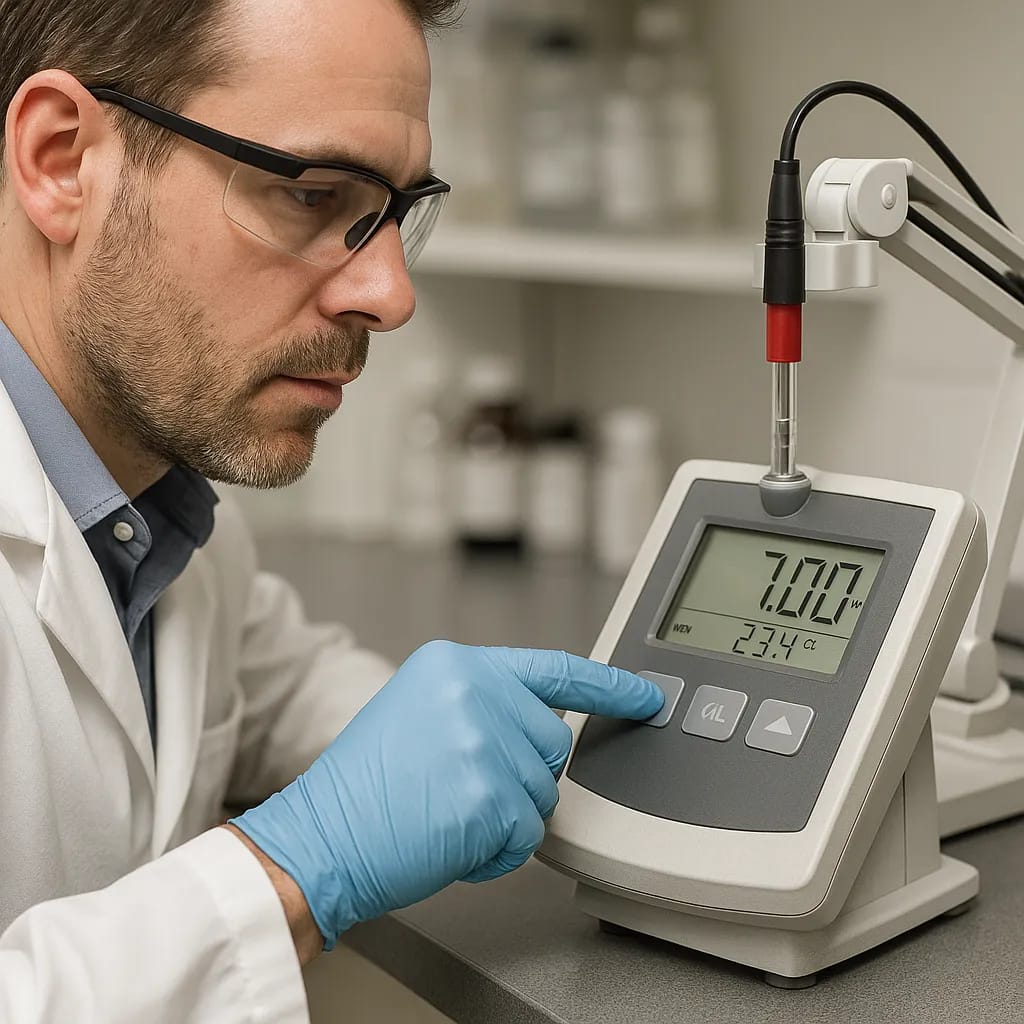

Pre-Checks (30–90 Seconds)

Before any pH meter calibration, a quick pre-check saves headaches later. Think of it as making sure the instrument is ready to “listen” before you teach it with buffers. Start with the glass electrode. Hold it up to the light. It should look clear, not cloudy, cracked, or coated in residue. If you spot buildup, give it a gentle rinse with deionized water. Avoid rubbing, since wiping damages the thin membrane that senses hydrogen ions. Next, check the reference junction. Air bubbles trapped inside can throw off readings, especially in portable pH meter calibration where meters are tilted often. A quick shake—like a thermometer—can dislodge them. Storage matters just as much. If the probe sat in plain water, it’s already compromised. Pure water leaches ions from the glass, leaving the electrode sluggish and unreliable. The right electrode storage solution maintains hydration and ionic balance, which keeps pH electrode calibration tight and repeatable. Dry storage, even for a few hours, can mean days of recovery—or a probe that never comes back to spec. Turn the meter on and watch the display. A stable baseline shows the electronics are fine. Flickering or drifting digits point to issues that need pH meter troubleshooting. Confirm cables and connectors are snug, especially in older models used for laboratory pH measurement. For digital pH meter calibration, check if the unit shows an automatic temperature compensation symbol (ATC). Temperature shifts change the slope and offset in calibration—about 59.16 mV per pH unit at 25 °C, dropping to ~54 mV at 5 °C—so ATC ensures calibration accuracy and precision holds across conditions. Finally, glance at your calibration standards for pH meter work. Buffers must be fresh, unexpired, and not cross-contaminated. If the pH 7 buffer reads off by more than ±0.05 units, calibration will fail no matter how clean the probe looks. Taking 30–90 seconds for these checks protects against pH measurement errors, electrode drift correction hassles, and wasted runs. Whether you’re handling hydroponics pH calibration, soil and water testing pH meters, or accurate water quality testing for drinking water, this small routine locks in instrument accuracy and reliability and keeps your probe alive longer.

Quick Accuracy Check (Immediately After)

Do not assume your calibration worked—verify it. Right after calibration, check your meter with a fresh buffer solution that you did not use during the setup. This quick accuracy check confirms your pH meter is giving reliable readings.

Verification procedure:

⚠️ If the reading falls outside the allowed tolerance, your calibration has failed. Here are possible causes:

Calibration slope interpretation:

Slope Value	Meter Performance	Action Required
98 – 102 % (or ~95 – 105 %)	Excellent	None — proceed with measurements; electrode is functioning properly. (GMP Insiders)
95 – 97 % or 103 – 105 %	Acceptable	Monitor performance; consider cleaning electrode or checking buffer quality. (GMP Insiders)
90 – 94 % or 106 – 110 %	Marginal	Clean electrode, verify buffer freshness, and recalibrate. (pim-resources.coleparmer.com)
< 90 % or > 110 %	Poor	Replace electrode or buffers immediately; slope is outside acceptable limits indicating maintenance needed. (pim-resources.coleparmer.com)

📊 Most digital pH meters show the calibration slope after a multi-point calibration. This one number reveals more about your system health than any other metric.

Troubleshooting a Failed Calibration

🛠️ When calibration fails, use systematic troubleshooting to find the issue fast. Work through these solutions in order to restore proper pH meter accuracy.

Problem: Meter Won’t Accept Calibration Point (Reading Won’t Stabilize)

Causes and solutions:

Problem: Calibration Completes But Verification Fails

Causes and solutions:

Problem: Slope Reading Below 90% Or Above 110%

Causes and solutions:

Problem: Readings Drift Continuously (Never Stabilize)

Causes and solutions:

Advanced Troubleshooting: The Electrode Response Test

If problems persist, test electrode response time:

Response time interpretation:

A slow response points to glass membrane degradation or a blocked reference junction. These issues will get worse over time and reduce overall measurement accuracy.

Cleaning & Care That Preserves Precision

The life of any electrode depends as much on care as on calibration. After each pH meter calibration, the probe should be rinsed with distilled water and blotted gently, never wiped, since scratches ruin the thin glass membrane responsible for ion exchange. Proper glass electrode care also means never leaving the sensor dry or in plain water; storage in an electrode storage solution keeps the junction hydrated and prevents drift. When buildup is visible, cleaning pH probe with a mild detergent or a special cleaning fluid restores performance and reduces pH measurement errors. For stubborn deposits, short soaks in dilute acid can help, though this should be done sparingly to protect the electrode. Checking the slope and offset in calibration during routine pH meter calibration steps also acts as a health check: a slope near 59 mV per pH unit at 25 °C confirms accuracy, while values below 90% warn of aging and possible electrode drift correction. These habits matter across every setting—laboratory pH measurement, digital pH meter calibration, aquarium water pH calibration, or hydroponics pH calibration—because good maintenance ensures instrument accuracy and reliability. In short, the importance of proper calibration cannot be separated from daily care. Without it, even certified buffers and careful buffer solution calibration won’t stop a failing electrode from giving bad data in testing pH in water samples, soil and water testing pH meter, or pH measurement in drinking water.

Daily Maintenance (After Each Use)

Immediate post-use cleaning:

Storage solution options (in order of preference):

Never store in:

Weekly Deep Cleaning (For Regular Users)

General-purpose cleaning procedure:

Specialized cleaning for specific contaminants:

Contaminant Type	Cleaning Solution	Soak Time (Approx.)
Protein buildup	Pepsin/HCl (enzymatic protein removal)	~30–60 minutes (or several hours per source) (Hamilton Company)
Oil/grease	Mild detergent, isopropyl alcohol, acetone or oil-specific cleaning solution (Hamilton Company)	5–20 minutes (detergent/solvent soak) (Hamilton Company)
Inorganic deposits	Dilute acids such as 0.1 M HCl	5–15 minutes (Hamilton Company)
Sulfide tarnish	Thiourea/HCl cleaning solution for silver sulfide removal	~15–60 minutes (Scribd)
General contamination	General purpose electrode cleaning solution	Per manufacturer instructions (~10–90 mins, varies with product) (hannainst.se)

Always rinse thoroughly with distilled water after any cleaning treatment. This step removes leftover cleaning solution and protects your pH electrode accuracy.

Monthly Maintenance Checklist

Junction Cleaning (Critical for Accuracy)

The reference junction—the small ceramic pin or porous area on your electrode—is where most problems start. Salt deposits can block the junction, stop proper electrical contact, and lead to reading drift.

Junction cleaning procedure:

Repeat this step monthly for electrodes used daily. For occasional use, repeat it quarterly.

When To Replace Your Electrode

Even with perfect maintenance, electrodes will fail over time. Replace the electrode when you notice these warning signs:

Calibration Frequency (Set A Policy)

No two applications demand the same schedule for pH meter calibration, which is why setting a clear policy is as important as knowing how to calibrate pH probe. In controlled labs, meters are often calibrated daily, sometimes before each run, because even small pH measurement errors can throw off an entire study. In industries like food and pharma, regulations demand calibration at the start of every shift, with strict records that follow calibration standards for pH meter accuracy. Routine work, such as pH measurement in drinking water or environmental monitoring, can often manage with calibration once a day, as long as buffers are fresh and pH meter calibration steps are followed. Field applications vary. Hydroponics pH calibration and aquarium water pH calibration usually need checks several times a week, since nutrient and waste loads change quickly. Soil and water testing pH meters may drift faster due to clogging from organic material, meaning calibration should be done before every major testing session. Even portable pH meter calibration in the field follows the same rule: the dirtier or more complex the sample, the more often calibration is needed. The science explains why. Electrodes lose sensitivity over time, and the slope and offset in calibration gradually drift away from the Nernst ideal of ~59 mV per pH unit at 25 °C. A fresh probe should stay within 95–102% slope, but after a few days of heavy use it may slip below 90%, making results unreliable. Frequent calibration corrects for this drift, while good glass electrode care and storage in an electrode storage solution slow it down. Without these habits, even advanced digital pH meter calibration systems can’t hold their precision. The policy should also account for workload. A heavily used meter in a research lab may require two or three calibrations a day, especially for laboratory pH measurement tied to laboratory precision techniques. Light use in a classroom or teaching lab may need calibration only once before a session. Whatever the setting, calibration best practices recommend documenting frequency and performance, checking buffer expiry dates, and adjusting schedules when drift becomes noticeable. In short, the frequency of calibration is not fixed—it’s tied to the balance between the importance of proper calibration and the risk of drift. The tighter the tolerance needed, the more often you calibrate. A written policy ensures consistency, protects instrument accuracy and reliability, and reduces the need for constant pH meter troubleshooting.

Standard Calibration Schedules

Daily calibration (recommended for):

Weekly calibration (acceptable for):

Monthly calibration (minimum for):

Situation-Based Calibration Triggers

Calibrate immediately when:

Industry-Specific Requirements

Pharmaceutical/Medical:

Environmental Testing:

Research/Academic:

Industrial Process Control:

Calibration Verification (Between Full Calibrations)

For systems that need daily use but not a full daily calibration, add simple verification checks:

This method balances measurement accuracy with real-world efficiency.

📊 Data Table: Calibration Frequency vs. Measurement Accuracy

Calibration Frequency	Expected Accuracy	Suitable Applications
Before each use	± 0.01 pH units (high-precision)	Research, pharmaceutical laboratories, clinical diagnostics where highest accuracy is critical. (Apera Instruments)
Daily	± 0.02 pH units	Environmental testing, critical QC labs, daily process monitoring where good precision is required. (Wikipedia)
Weekly	± 0.05 pH units	Routine lab monitoring, general quality control, field sampling with moderate precision needs. (Apera Instruments)
Monthly	± 0.1 pH units	Hobby use, non-critical screenings, general aquatic or agricultural checks. (KitchenJournal)
Quarterly	± 0.2 pH units	Occasional use only, long-term monitoring without strict precision requirements. (KitchenJournal)

Conclusion

pH meter calibration is less about routine and more about trust. Every reading you take depends on the meter knowing its slope and offset. At 25 °C, a healthy probe should follow the Nernst equation with a slope near 59 mV per pH unit, yet even high-end probes drift with time and need recalibration to stay within range. Many users try calibrating pH meter with water, but plain distilled water is unstable. It absorbs carbon dioxide, dropping to a pH near 5.7, which makes it worthless for setting a reference point. That’s why pH calibration solution vs water isn’t a choice—only certified buffer solution calibration ensures calibration accuracy and precision. Good calibration also depends on care outside the buffer. Probes stored in tap water lose ions and respond slowly, while those kept in an electrode storage solution hold their charge and stay sharp for months. Gentle rinsing, never scrubbing, and routine cleaning pH probe practices are just as vital as following the pH meter calibration steps. Even small mistakes—like wiping the bulb or reusing old buffers—create pH measurement errors that ruin accurate water quality testing. The stakes are bigger than a number on the display. In laboratory pH measurement, calibration keeps experiments reproducible. In food science, it protects against unsafe acidity levels. In pH measurement in drinking water, it prevents false confidence about safety. In farming, soil and water testing pH meters and hydroponics pH calibration protect crops from nutrient lockout. Even aquarium water pH calibration can mean life or death for delicate species. Across all these fields, scientific instrument calibration is what gives confidence that results match reality. Skipping checks or ignoring calibration best practices risks data drift, poor instrument accuracy and reliability, and wasted time fixing problems with pH meter troubleshooting later. Proper care, from glass electrode care to verifying slope and offset in calibration, saves more than money—it preserves the credibility of your work. In the end, the importance of proper calibration is simple: you either know your pH, or you don’t. And if you don’t, the numbers mean nothing.

Summary

Calibrating a pH meter is key for reliable and precise measurements in any laboratory. It makes sure the meter’s slope and offset match the expected Nernst response of about 59.16 mV per pH at 25°C. This protects accuracy across many types of testing. Start with proper preparation. Hydrate the electrode, check for damage, and use certified fresh buffers such as pH 4.01, 7.00, and 10.01. Confirm the correct buffer set and turn on temperature compensation if needed. The usual calibration workflow begins with pH 7.00. Then move to an acidic buffer or basic buffer that brackets your sample range. Add a third point if you need a wider measurement range. At each step, rinse with deionized water and gently blot the glass membrane to prevent contamination. After calibration, review the slope value (95–102%) and offset value to confirm good performance. Set your calibration frequency based on use. For critical measurements, calibrate daily or before each test. For routine work, you can calibrate less often. Finish with a quick verification check. Store the probe in KCl solution, never in deionized water. Clean fouled probes with proper cleaning solutions when needed. Keep clear records, including buffer lot numbers, electrode ID, slope and offset values, and operator name. Good documentation supports strong traceability and meets quality standards.
