Introduction

A DC power supply is the unsung hero behind the seamless operation of our modern electronic devices. It transforms alternating current (AC) from standard power outlets into a stable direct current (DC), ensuring that electronic devices receive the precise and consistent voltage and current they require. This transformation is crucial because DC power flows in a single direction, providing a constant voltage that is essential for the

reliable performance of sensitive electronic equipment. There are various types of DC power supplies, each designed to meet specific application needs. Linear power supplies offer low noise and are ideal for applications requiring minimal electrical interference, while switching power supplies are more efficient and compact, making them suitable for a wide range of devices, from laptops to electric vehicles . Additionally, regulated power

supplies maintain a constant output voltage despite variations in input voltage or load conditions, ensuring the protection and longevity of electronic devices. In the ever-evolving landscape of technology, the role of DC power supplies has become increasingly significant. They are integral to the functioning of electronic devices in various sectors, including medical equipment, telecommunications, and renewable energy systems. For instance, solar cells generate DC electricity, which must be regulated and

converted appropriately to power homes and businesses. Understanding the intricacies of DC power supplies—from their types and functionalities to their applications—is essential for anyone involved in electrical engineering or working with electronic devices. As our reliance on technology grows, so does the importance of these power sources in ensuring the efficiency, safety, and reliability of our electronic world.

Key Takeaways

Understanding DC Power Supply Fundamentals

Knowing how DC power supply works is key for anyone with electronics or electrical systems. Whether you’re a hobbyist or an engineer, understanding these basics is crucial. Let’s dive into the essential principles of DC power supplies.

The Basic Definition of Direct Current

Direct current (DC) is defined as the continuous flow of electrons in one direction through a conductor, distinguishing itself fundamentally from alternating current (AC). This uniqueness stems from its stable polarity and consistent DC voltage, which are essential qualities for operating most electronic devices. The reliability and precision of DC electricity are particularly valuable in sensitive applications requiring exact control

of voltage and current. The roots of DC power date back to the early 1800s, when pioneering scientists like Alessandro Volta crafted the first practical batteries, thereby establishing the initial DC voltage sources through chemical reactions. These primitive batteries laid a crucial foundation for contemporary DC power supplies, evolving into sophisticated solutions such as regulated power supplies, switching power supplies, and highly efficient DC-

DC converters. Today, understanding DC electricity involves mastering fundamental electrical concepts such as Ohm’s Law, which quantifies the relationship between voltage output, output current, and resistance. This inherent predictability makes DC power indispensable in precision-driven sectors like medical technology, telecommunications, and advanced computing. Modern developments in power converters, particularly switching DC power supplies and linear power supplies, have significantly advanced efficiency, performance,

and reliability. Switching power supplies (also known as switched-mode power supplies) excel in energy efficiency and compactness, suitable for powering everything from electronic equipment to electric vehicles. In contrast, linear power supplies deliver clean, stable constant voltage, essential for laboratory-grade electronic devices requiring minimal electrical noise. Furthermore, advances in programmable supplies and multi-range supplies allow tailored solutions for complex power requirements, managing diverse DC voltages

and output ranges. These supplies actively regulate the input voltage from AC mains voltage, converting it seamlessly into regulated direct current. This meticulous voltage regulation ensures the stability and integrity of the delivered electrical energy, safeguarding devices against potentially harmful fluctuations. Overall, the essential qualities of stability, predictability, and precision that characterize direct current (DC) underscore its critical role in modern power distribution and power transmission. Whether it’s converting AC power from the

power grid, powering renewable energy technologies like solar cells, or delivering precise energy levels to delicate electrical devices, DC power remains central to the ongoing evolution of our electrical engineering landscape.

How DC Differs from AC Power

The primary distinction between direct current (DC) and alternating current (AC) lies in the nature of their current flows. DC electricity consistently travels in one direction, ensuring a stable direct current with a fixed polarity and predictable DC voltage. Conversely, alternating current (AC) continuously changes direction multiple times each second, forming the distinctive sine-wave pattern associated with standard AC voltage. This alternating behavior is advantageous for efficient power transmission across extensive distances because

AC voltage can easily be stepped up or down by transformers to minimize losses over long power lines. This inherent efficiency established alternating current AC as the standard for modern power grids and global electrical power infrastructure, delivering electricity from power plants to our homes and businesses. However, a fundamental mismatch arises because most electronic devices rely explicitly on direct current (DC) for safe and reliable operation. To bridge this crucial gap, AC DC power supplies or simply DC power supplies are

indispensable, acting as sophisticated power converters. When current flows from AC mains voltage through a DC power supply, it undergoes meticulous transformation. Initially, it is converted from AC voltage into pulsating DC, a step commonly executed via rectification. Subsequently, the pulsating output is carefully smoothed and stabilized—typically via capacitors and voltage regulators—to produce a steady, controlled constant voltage supply. This process, known as voltage regulation, ensures the provision of precise output

voltages and reliable constant current, crucial for sensitive electronic equipment. Different types of DC power supplies such as linear power supplies, switching DC power supplies (also known as switched mode power supplies), and regulated power supplies are available. Linear power supplies offer extremely clean, noise-free constant voltage suitable for delicate laboratory instruments, while switching power supplies provide highly efficient, compact solutions ideal for everyday electronics and electrical devices. Regulated

power supplies maintain precise and stable constant output voltage or constant output current despite fluctuations in the input voltage or changes in the connected load. Advanced models, including programmable supply, multi-range supply, or multiple output supply units, further enhance flexibility by accommodating diverse output ranges and precisely controlling maximum output current. This adaptability makes DC power supplies critical in sectors ranging from telecommunications and renewable energy—such as converting DC

electricity from solar cells—to high-tech medical and industrial applications. Thus, a comprehensive understanding of what is a DC supply underscores its essential role as the intermediary that reliably converts AC power into the precisely regulated DC output that powers our technology-dependent world.

📊 Comparison Table: AC vs. DC Power Characteristics

Characteristic	AC Power	DC Power
Current Direction	Bidirectional (alternating)	Unidirectional (constant)
Voltage Over Time	Sinusoidal wave (varies)	Constant level
Transmission Efficiency	Excellent for long distances	Higher losses over distance
Voltage Transformation	Easy with transformers	Requires electronic converters
Typical Applications	Power grid distribution	Electronic devices, batteries
Safety Considerations	Can cause sustained muscle contraction	Typically safer at low voltages
Energy Storage	Difficult to store directly	Easily stored in batteries

What Is DC Power Supply and How Does It Work?

A DC power supply serves as an essential and sophisticated backbone of modern electronic systems, meticulously converting general electrical energy into stable, usable direct current (DC). At its core, a DC power supply functions as a specialized power converter, transforming standard alternating current (AC)—commonly available from home power outlets or industrial power lines—into precisely regulated DC voltages. This transformation is vital because, unlike AC, DC electricity flows consistently in one direction, providing a

reliable, predictable energy source essential for protecting sensitive electronic devices from voltage spikes, fluctuations, or irregularities common in raw AC voltage from the broader power grid. Different types of DC power supplies cater specifically to varied application requirements. For example, switching DC power supplies (often known as switched mode power supplies) deliver exceptional efficiency, lower power consumption, and a compact form factor, making them ideal for widespread consumer electrical devices like

laptops, smartphones, and gaming consoles. On the other hand, linear power supplies are favored in laboratory settings or high-precision applications due to their ability to produce ultra-stable, clean, and low-noise constant voltage output, even though they might have higher electrical power consumption. In advanced scenarios, regulated power supplies play an especially critical role. They ensure the output voltage or output current remains steady despite variations in the input voltage or changes in electrical load. This meticulous

voltage regulation is essential in fields ranging from medical diagnostics and telecommunications to research laboratories and high-performance computing, safeguarding devices and maintaining operational reliability. Moreover, modern DC power supplies often come equipped with versatile capabilities such as a programmable supply, allowing precise control over the maximum output current, as well as features like a multi-range supply or multiple output supply options. Such functionality enables a single unit to provide various output

voltages and currents tailored to complex and evolving electronic equipment needs. The global reliance on technology, including renewable energy technologies such as solar cells, further emphasizes the indispensable nature of DC power supplies. Solar cells, for instance, generate DC electricity directly, which must be regulated through sophisticated DC-DC converters to match the necessary power requirements of homes, industrial setups, and electric vehicles. Ultimately, to fully grasp what is a DC supply, one must appreciate its pivotal role

in contemporary power transmission, power distribution, and the broader domain of electrical engineering. This essential piece of equipment intricately bridges the gap between standard AC power from power plants and precisely regulated, dependable DC output, ensuring that modern technology functions safely, efficiently, and reliably in our increasingly electronics-driven world. The diagram below explains DC power supply.

Core Functions and Purpose

The primary mission of any DC power supply encompasses three critical functions:

1. Voltage Conversion: Transforming the input voltage (typically 120V or 240V AC) to the desired output voltage level. Your smartphone charger, for instance, converts 120V AC to approximately 5V DC.

2. AC to DC Rectification: Converting alternating current into direct current through a process called rectification. This eliminates the bidirectional flow and establishes unidirectional electron movement.

3. Regulation and Stabilization: Maintaining consistent output voltage and current despite fluctuations in input power or changes in load conditions. This ensures your devices receive clean, stable power regardless of external variables.

Modern DC power supplies also incorporate protective features that prevent damage from overcurrent, overvoltage, overheating, and short circuits. These safety mechanisms have become increasingly sophisticated in 2026, with many units now featuring AI-driven predictive protection that anticipates potential failures before they occur.

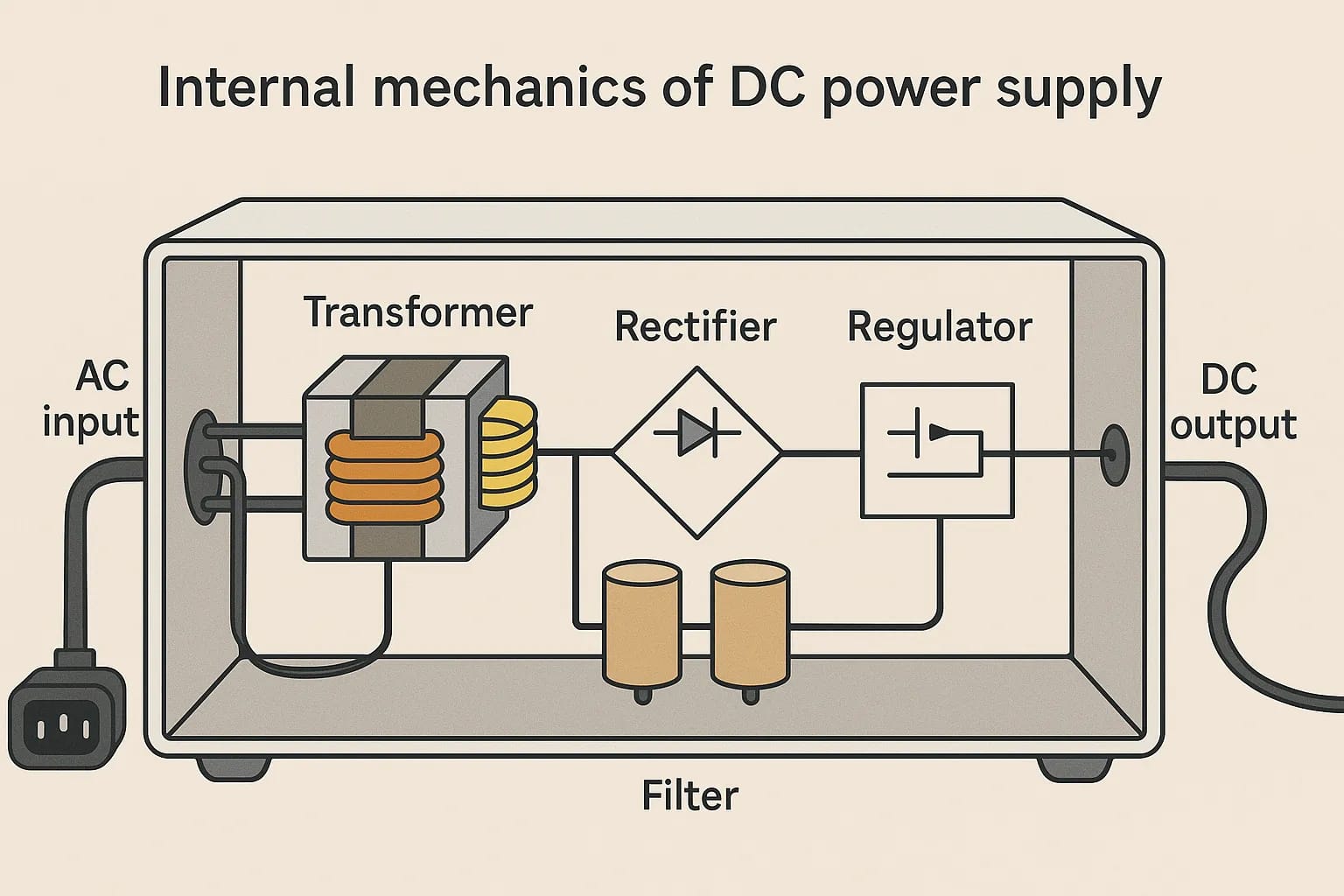

The Internal Mechanics of DC Power Supplies

Inside a DC power supply, the work is quiet but exact. AC power from the grid enters first, straight from the ac mains voltage that feeds power plants and power lines. A power converter then steps in. It changes alternating current AC into direct current DC, so current flows in one direction. Rectifiers handle the switch. Filters smooth the ripple. Regulation circuits lock the output voltage in place. That is how a dc voltage source delivers stable direct current to electronic devices. Some designs use linear power supplies for low noise. Others rely on

switching dc power supplies, also called switched-mode power supplies, to cut heat and power consumption. A regulated power supply holds a constant voltage or constant current even as input voltage shifts. An unregulated power supply does not. The result shows up at the dc output as clean dc voltages, set by voltage regulation and limited by maximum output current. This control keeps electrical devices safe, steady, and alive. Below is a diagram showing how this works in real time.

Understanding what happens inside a DC power supply demystifies these essential devices. Let’s follow the electrical journey from input to output:

Step 1: Transformer Stage – The input AC voltage first encounters a transformer that steps the voltage up or down to an intermediate level more suitable for the subsequent conversion stages. In modern switching power supplies, this transformation might occur at high frequencies for improved efficiency.

Step 2: Rectification – The transformed AC voltage then passes through rectifier circuits, typically composed of diodes arranged in a bridge configuration. These diodes act as one-way valves, allowing current to flow in only one direction. The output from this stage is pulsating DC—not yet the smooth DC we need.

Step 3: Filtering – Capacitors and inductors in the filter stage smooth out the pulsating DC, removing most of the ripple voltage (the residual AC component). Think of this like a shock absorber smoothing out bumps in a road. The result is much cleaner DC, though still not perfectly stable.

Step 4: Regulation – The voltage regulator circuit maintains constant output voltage despite variations in input voltage or load current. Linear regulators dissipate excess energy as heat, while switching regulators use high-frequency switching to achieve superior efficiency.

Step 5: Protection and Control – Modern power supplies include sophisticated monitoring circuits that continuously check output parameters and activate protection mechanisms when necessary. In 2026, many units incorporate microprocessor control for enhanced functionality.

The Evolution of DC Power Supply Technology

The evolution of DC power supply technology is a fascinating journey through the history of electrical engineering, driven by the growing demands of electronic devices, precision instrumentation, and industrial automation. In its earliest form, the dc supply was rudimentary—delivering direct current (DC) through mechanical means like rotary converters or early power plants. But as our understanding of electric power matured,

so did the technologies behind power supplies. The shift from unregulated power supplies—which offered minimal voltage regulation and fluctuating output voltage—to regulated power supplies with constant output voltage and enhanced stability marked a pivotal advancement. Today, switching power supplies, linear power supplies, and programmable supply units dominate the market, enabling precise control over voltage and current to meet

the needs of everything from solar cells and electronic equipment to medical devices and power transmission systems. Modern dc power supplies boast features like constant voltage supply, constant output current, multi-range supply operation, and integration with digital interfaces for dynamic control and monitoring. Whether used in ac dc power supplies, dc dc converter modules, or as part of a power converter embedded in a complex system, today’s units provide stable direct current across a wide output range,

essential for maintaining the performance and safety of sensitive electrical devices. With innovations like switched mode power supplies and high-efficiency dc voltage sources, we now see DC technology playing a core role in powering electronic devices, optimizing power distribution, and transforming alternating current (AC) from the power grid into clean, reliable DC electricity. The result? A dramatic reduction in power consumption, greater voltage output flexibility, and a new frontier in electrical energy delivery—one where dc output is tailored, efficient, and indispensable.

Historical Development

The story of DC power supplies is tied to the rise of modern electricity. In the late 1800s, Thomas Edison pushed direct current (DC) for city power systems, while Nikola Tesla and George Westinghouse backed alternating current (AC). AC won the War of Currents because it could move power over long distances with less loss. Even so, DC power never faded. It stayed vital for telegraphs, batteries, early electronics, and later for lab and industrial gear. Early DC power supplies were basic. Most used a transformer and a rectifier to turn

AC voltage into DC voltage. Control was poor. Output drifted. These units were large, heavy, and ran hot. In the 1930s, selenium rectifiers replaced older parts in many designs and raised reliability. A bigger shift came in the 1950s with the silicon diode. This small semiconductor device handled higher current, lasted longer, and worked more efficiently than earlier rectifiers. The rise of the transistor and later integrated circuits (ICs) changed everything. Engineers could now build true voltage regulation systems. Output became stable and

clean. By the 1970s, the switching power supply appeared. Instead of wasting energy as heat, it switched current on and off at high speed. This design cut size, weight, and heat while boosting efficiency. Modern DC power supplies still build on these core advances. Here is a historically grounded list tracing the development of DC power supplies

DC Power Supplies: the “one-way current” glow-up

Early 1800s Volta sparks the “one-way” idea batteries enter the chat 1870s–1890s Power Wars (DC vs AC) go mainstream Edison says “DC forever” 1900s Industrial DC: big, loud, and necessary rotary converters + motor-generators 1920s–1940s Vacuum-tube rectifiers: “AC in, DC out” radios get fed 1950s–1960s Linear supplies: clean + steady (but warm) transistors start doing the heavy lifting 1960s–1970s Regulated CV/CC becomes the lab default precision knobs, fewer surprises 1970s–1980s Switching supplies: smaller, cooler, faster high-frequency magic 1990s Multi-output + digital control shows up hello menus, goodbye pure knobs 2000s Modular + renewables: mix-and-match power solar/battery/grid start hanging out 2010s Smart supplies + IoT vibes USB/Ethernet + telemetry 2020s High-efficiency + wide-range programmable beasts real-time feedback everywhere

Tip: Use ↑/↓ to move, Enter/Space to open.

Modern Innovations and Improvements

Today’s DC power supplies are much different from the old ones. Thanks to several key innovations:

Wide-bandgap semiconductors like gallium nitride (GaN) and silicon carbide (SiC) are changing modern power design. These materials have a wider bandgap than silicon, which lets them handle higher voltages, higher temperatures, and faster switching frequencies. Because of this, GaN devices and SiC devices waste less energy as heat. They boost efficiency and allow smaller power supplies and power converters. Higher switching speed also means smaller transformers and inductors, which reduces overall size and weight. Unlike

traditional silicon-based semiconductors, these materials keep working under tough electrical stress. That opens new options for compact, high-power systems in areas like electric vehicles, renewable energy systems, and advanced DC power supplies.

Digital control systems have replaced many older analog circuits in modern power supplies and power converters. Instead of fixed hardware loops, designers now use microprocessor-based control and microcontrollers to manage output. This shift allows tight voltage regulation and current regulation. It also adds programmability, so users can set limits, ramps, and timing through software. Many systems now include remote monitoring and remote control over USB, Ethernet, or other communication interfaces. Some

advanced units use machine learning algorithms to study usage patterns. The system adjusts switching, cooling, and load response to improve efficiency and extend component life. These smart controls help deliver stable power while reducing waste and heat.

IoT integration is now common in modern DC power supplies. Many units include built-in network connectivity through Ethernet, Wi-Fi, or industrial fieldbus systems. This lets users access equipment from a lab, factory floor, or remote site. With remote monitoring, engineers can track voltage, current, temperature, and load status in real time. Remote control allows changes to setpoints without touching the device. Built-in diagnostics report faults, overload events, and system health. This data supports predictive maintenance.

Instead of waiting for failure, teams use trend data to spot wear early. It also supports real-time performance optimization across distributed systems, such as data centers, telecom racks, and test benches. The result is better uptime, tighter control, and less wasted energy.

Stricter efficiency standards and growing environmental regulations have pushed major gains in modern power supplies. Programs like ENERGY STAR and guidelines from the U.S. Department of Energy (DOE) set clear targets for lower energy consumption and reduced standby power. As a result, many 2026 switching power supplies now exceed 95% efficiency under typical load. That means far less energy waste. Less wasted energy turns into less heat generation, which improves thermal management and extends component life.

Older linear designs often ran hot and lost a large share of input power as heat. Modern high-efficiency designs cut those losses. The result is smaller cooling systems, lower power bills, and reduced carbon emissions.

Modern modular architectures and scalable architectures are common in today’s DC power systems. Many designs use modular construction, where each power module works as a self-contained unit. Users can add or remove modules as needed. This setup allows higher power capacity by placing modules in parallel operation. It also supports redundancy, such as N+1 redundancy, which keeps the system running if one module fails. Data centers and telecom racks often rely on this approach to protect uptime. The benefit is clear. Teams can expand

output without a full system replacement. As application requirements grow, they scale the system step by step. This reduces downtime, lowers upgrade cost, and keeps the power setup flexible.

Recent advances in switching power supply design and wide-bandgap semiconductors have made many modern DC power supplies up to 80% smaller than older linear models. Higher switching frequencies allow smaller transformers and inductors, which cuts size and weight. These units also run at higher efficiency, so they create less heat and need less cooling. Better thermal management improves lifespan and reliability. Built-in protection circuits now guard against overvoltage, overcurrent, short circuits, and electrical faults.

Many systems also include IoT connectivity and network interfaces like Ethernet. This supports remote monitoring and remote control through web dashboards or software tools. Modern DC power supplies are no longer simple converters. They are smart, connected devices that support more automation, better uptime, and stronger energy efficiency.

Types of DC Power Supplies Explained

Choosing the right DC power supply is key for your project. Each type has its own strengths and weaknesses. Knowing these helps you pick the best one for your needs and budget.

Linear Power Supplies

Linear power supplies represent the traditional—but still highly valued—approach to generating direct current (DC) from alternating current (AC). In a linear power supply, the process begins with a transformer that steps down the ac input voltage—typically from the ac mains voltage—to a lower level. This reduced voltage is then passed through rectifiers, which convert it into pulsating DC, and finally through filter capacitors that smooth the signal. What sets linear designs apart is their use of active components (like transistors or operational

amplifiers) operating in the linear region to achieve voltage regulation. This enables them to deliver an ultra-clean, low-noise dc output, ideal for precision-demanding applications. Thanks to their ability to produce stable direct current with minimal ripple and electrical noise, linear power supplies remain indispensable in contexts where constant voltage purity is paramount. These include medical devices, audio amplifiers, laboratory test equipment, and other sensitive electronic devices where signal distortion can compromise

performance or safety. Their relatively straightforward circuitry also makes them easy to troubleshoot and repair—an appealing trait for both engineers and technicians. However, linear power supplies come with notable trade-offs. Because their voltage regulation relies on dissipating excess electrical power as heat, they are inherently inefficient—typically operating at only 40–50% efficiency. This inefficiency results in significant power consumption, larger thermal footprints, and the need for substantial heat sinking or fan-based cooling.

Consequently, they tend to be bulky, heavy, and less practical for compact or energy-sensitive systems. Despite these drawbacks, their pristine output voltage and predictable behavior make linear power supplies a top choice for use cases where voltage and current precision outweigh size or energy efficiency. In the broader ecosystem of dc power supplies—including switching dc power supplies, constant current power supplies, and programmable supply units—linear designs continue to hold a crucial niche. Understanding their role in

modern electrical engineering deepens our appreciation of how we deliver electricity with fidelity, control, and confidence.

Switching Power Supplies

Switching power supplies—also known as Switched Mode Power Supplies (SMPS)—have revolutionized the landscape of modern DC power supply technology. Unlike linear power supplies that dissipate excess electrical power as heat, switching power supplies operate by rapidly toggling power transistors on and off at high frequencies, typically between 50 kHz and 1 MHz. This high-frequency switching enables extremely efficient energy conversion, often achieving efficiencies above 85–90%, dramatically reducing power

consumption and thermal waste. Because they transfer energy only when necessary and avoid continuous dissipation, switching DC power supplies are significantly smaller, lighter, and cooler-running than their linear counterparts. These advantages have made them the dominant choice across a broad spectrum of applications—from laptop chargers and mobile devices to industrial automation systems, solar cells, and high-performance electronic equipment. Their ability to handle wide input voltage ranges and deliver tightly

regulated dc output makes them ideal for both ac dc power supplies and dc dc converters in global power distribution networks. However, this impressive performance does come with trade-offs. The rapid voltage and current transitions in SMPS can generate electromagnetic interference (EMI) and electrical “noise” that may disrupt the operation of nearby sensitive electronic devices or high-precision test instruments. To mitigate this, designers often incorporate filters, shielding, and feedback circuits to suppress ripple and ensure stable

direct current output. Despite these challenges, the blend of high efficiency, compact design, broad adaptability, and robust voltage regulation has made switching power supplies the go-to solution in virtually every corner of modern electrical engineering. Whether used as a programmable supply, a multi-range supply, or a constant voltage power supply, they exemplify how innovation in power supply design continues to shape the future of electrical energy usage, from the power grid to the palm of your hand. Understanding

what is a DC supply inevitably leads to understanding why SMPS technology dominates today’s dc power supplies landscape.

Unregulated vs. Regulated Power Supplies

When comparing unregulated power supplies to regulated power supplies, the key difference lies in the stability of their output voltage under changing conditions. An unregulated power supply provides DC output whose voltage fluctuates based on variations in the input voltage or changes in load current. These designs are structurally simple—typically comprising a transformer, a rectifier, and a filter capacitor—and are often used in low-cost or low-precision applications where tight voltage regulation isn’t critical. While cost-effective, they

lack the control needed for sensitive or high-performance electronic devices. In contrast, a regulated power supply incorporates advanced control circuitry—usually a feedback loop—that continuously monitors the output voltage or output current and adjusts it in real time to maintain a constant voltage or constant current, regardless of input or load variations. This stability is essential for protecting sensitive electronic equipment and ensuring predictable performance in environments that demand high precision, such as medical

instrumentation, telecommunications systems, computers, and test and measurement gear. There are various forms of regulated power supplies, including linear power supplies, switching power supplies, programmable supply units, and constant current power supplies, all offering different advantages in terms of efficiency, noise level, and output range. These systems often feature protection mechanisms such as maximum output current limiting, thermal shutdown, and ripple suppression—making them essential for

applications that require stable direct current under demanding conditions. Choosing between regulated and unregulated power supplies depends largely on your application’s tolerance for voltage and current fluctuations. For robust, non-sensitive loads such as motors, lights, or simple electrical devices, an unregulated power supply might suffice. However, for any application involving precision electronics, signal integrity, or safety-critical systems, a regulated direct current source is not just preferred—it’s essential.

Understanding what is a DC supply and when to use each type is fundamental to designing or troubleshooting any modern electrical engineering system.

Programmable DC Power Supplies

Programmable DC power supplies are the most advanced. They let you adjust output and control it in many ways. You can set voltage and current limits with high precision, and many have digital interfaces for computer control. They’re essential in research, development, and making things. They’re great for automated tests where power needs to change. Modern ones can do things like sequence outputs, generate waveforms, and log data. They cost more, but their flexibility and precision make them worth it for pros. You’ll find them in

electronics making, semiconductor testing, and labs where precise power control is key.

Overview Of The Different DC Power Supplies

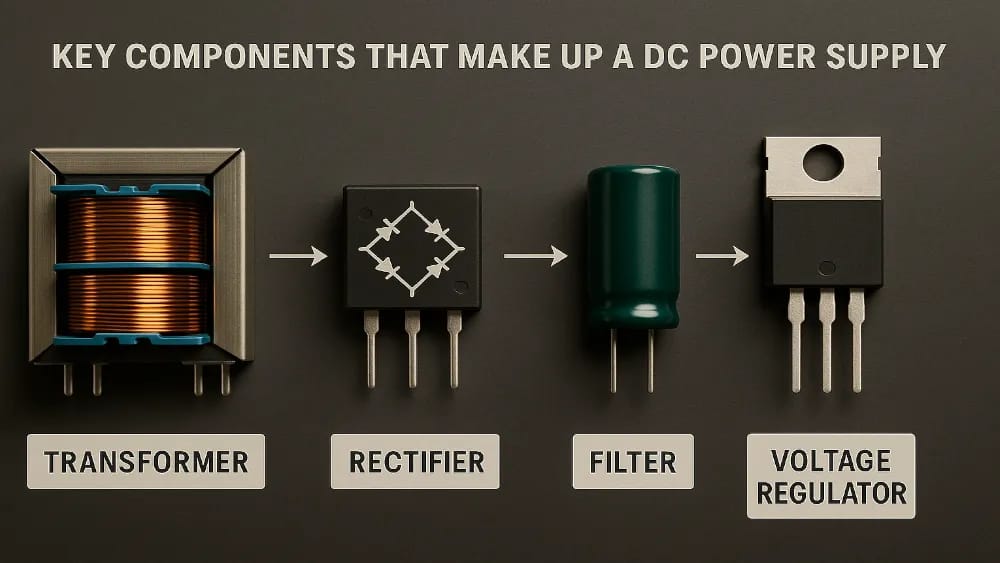

Key Components That Make Up a DC Power Supply

A DC power supply works thanks to several key parts. Each part plays a vital role in giving stable electricity. They work together to change the alternating current from your wall outlet into the direct current your devices need. Understanding these parts helps us see how power converters work. They are crucial in today’s electronics.

Transformers and Rectifiers

Transformers are the first stage in most AC-powered DC power supplies. These electromagnetic devices move energy between circuits through magnetic coupling. At the same time, they change voltage levels to match the next stage. A step-down transformer lowers high AC line voltage to a safer level for rectification. In older linear power supplies, the transformer runs at line frequency—either 50Hz or 60Hz. Low frequency means the unit needs a large iron core to handle the load. That makes it heavy and bulky. Modern switching

power supplies work differently. They convert power at high switching frequencies, often between 50kHz and 2MHz. Higher frequency allows much smaller transformers with lighter cores. The result is major cuts in size and weight, while keeping strong efficiency and stable output.

Rectifiers convert AC to DC through the one-way conductivity of diodes. Several rectifier configurations exist:

Modern rectifiers rely on silicon diodes and Schottky diodes to convert AC to DC. A standard silicon diode handles solid current and blocks reverse flow. A Schottky diode has a lower forward voltage drop, which means less power lost as heat. It also offers fast switching, which helps in high-speed switching power supplies. In high-power systems, designers often use controlled rectifiers such as thyristors or silicon-controlled rectifiers (SCRs). These devices allow phase-angle control, which adjusts how much of the AC wave passes

through. By changing the firing angle, engineers can fine-tune output voltage and manage large loads with better control. This mix of fast diodes and controlled devices gives modern power supplies higher efficiency, tighter control, and stronger performance under heavy demand.

Filters and Regulators

Filter circuits clean up the rough output that comes from rectifiers. After AC to DC conversion, the signal is not flat. It is pulsating DC with dips and peaks. The simplest filter uses a large capacitor placed across the output. During voltage peaks, the capacitor stores charge. When the voltage drops, it releases that charge back into the circuit. This charge and discharge cycle helps smooth the waveform. The goal is to reduce ripple voltage and create a more steady DC output. In many power supplies, this basic capacitor filter is the first step

toward stable, usable power.

More sophisticated filters combine capacitors and inductors in various configurations:

Voltage regulators maintain constant output voltage despite variations in input voltage or load current. many fundamental types exist:

Linear Regulators: Pass transistors operate in their active region, continuously adjusting resistance to maintain constant output. Simple and low-noise but inefficient, dissipating excess power as heat. Common types include:

Switching regulators control power in a very different way than linear designs. Instead of slowly dropping extra voltage as heat, a transistor works as a high-speed switch. It turns fully on or fully off, often at high switching frequency. The output is set by changing the duty cycle, which is the ratio of on-time to off-time. A control circuit adjusts this timing to keep steady output voltage, even when load or input changes. Because the transistor is not stuck in a half-on state, these regulators reach high efficiency and waste far less energy as

heat. The trade-off is more circuit complexity and the need for inductors, capacitors, and control ICs. Common topologies include:

Control Circuits and Protection Mechanisms

Modern DC power supplies incorporate sophisticated control and protection systems that enhance safety, reliability, and functionality.

Control Circuits manage regulation, monitoring, and user interface functions:

Protection Mechanisms safeguard both the power supply and connected equipment:

These protections are key in power distribution systems. Without them, a small problem could lead to big damage. This could harm expensive equipment or be dangerous.

Constant Voltage vs. Constant Current Operation

It’s important to know the difference between constant voltage and constant current operation. These two modes are key to choosing the right DC power supply. Modern supplies often have both, letting you pick the best mode for your project.

Understanding Constant Voltage Mode

In constant voltage mode, a DC power supply maintains a fixed and precise output voltage, regardless of changes in the electrical load. This function is critical in most modern electronic devices, where a stable dc voltage is essential for both performance and protection. The power supply continuously monitors its voltage output through internal feedback circuits and makes real-time adjustments to the output current as demand fluctuates. This allows the supply to dynamically compensate for load variations while holding the voltage and

current steady—ensuring the connected electronic equipment receives uninterrupted and clean dc power. For instance, a computer motherboard typically requires a precise 12V or 5V constant voltage supply to function reliably. If this voltage drifts, even slightly, critical components like CPUs or memory modules may malfunction or suffer irreversible damage. That’s why constant voltage power supplies are the backbone of everything from everyday ac dc power supplies to advanced programmable supply units used in test labs and manufacturing.

However, every dc power supply operating in constant voltage mode has a defined maximum output current based on its internal limits. When a load attempts to draw more current than the supply’s rating allows, the system automatically transitions into constant current mode to prevent overcurrent conditions. This dual-mode protection—found in most regulated power supplies and switching dc power supplies—ensures that sensitive electronic devices are shielded from electrical stress while extending the longevity of both the power

source and the equipment it supports. Whether you’re powering solar cells, designing embedded systems, or running a dc dc converter in a multiple output supply, the precise control offered by constant voltage operation is non-negotiable. It’s one of the key reasons regulated direct current has become the industry standard across all sectors of electrical engineering, from consumer gadgets to high-end instrumentation. Understanding how constant voltage and constant current power supplies work in tandem helps clarify the

true value of a well-designed dc supply—and why it’s central to safe, efficient power distribution in today’s tech-driven world.

In How CV Mode Works: The control circuit continuously monitors output voltage and adjusts the regulator to maintain the setpoint. If load resistance decreases (drawing more current), the supply increases current delivery while holding voltage constant. If load resistance increases, current decreases while voltage remains stable.

Typical CV Applications:

CV Mode Characteristics:

Most electronic devices are built for constant voltage operation. Their internal circuits, including microprocessors, memory chips, and control ICs, are designed to run at fixed voltage levels such as 3.3V, 5V, or 12V. If the applied supply voltage rises above the rated limit, it can cause overvoltage damage. This may burn out components, break down insulation layers inside chips, or destroy sensitive junctions. Damage can happen fast. If the voltage is too low, the device may not start or may reset without warning. Low voltage can lead to

malfunction, unstable signals, data errors, or complete failure to operate. Stable DC voltage keeps electronics safe and working as designed. That is why tight voltage regulation is critical in modern power systems.

When and Why to Use Constant Current Mode

In constant current (CC) mode, the power supply maintains fixed output current regardless of load resistance (up to the voltage limit). The output voltage automatically adjusts to deliver the specified current.

How CC Mode Works: the control circuit keeps the output current fixed at a chosen setpoint. It does this by sensing current through a current sense resistor or monitor circuit. The measured value feeds into a feedback loop, where an error amplifier compares it to a set reference current. To hold the target current steady, the supply adjusts the output voltage as needed. Based on Ohm’s Law (V = I × R), if load resistance rises, the supply increases voltage to push the same current through the load. If resistance drops, the supply lowers

voltage to prevent excess current flow. This method protects components during testing, battery charging, and LED driving. The key goal of CC mode is simple: keep current constant while voltage moves up or down to match the load.

Typical CC Applications:

CC Mode Characteristics:

Many programmable power supplies can shift between constant voltage (CV) mode and constant current (CC) mode on their own. This feature is often called automatic crossover. The unit starts in CV mode, holding a steady output voltage. As the load draws more current, the supply keeps voltage fixed until it reaches the set current limit. Once that limit is hit, the control loop switches to CC mode. At that point, the supply holds output current steady and lets voltage drop as needed to prevent overcurrent. This crossover behavior

protects both the supply and the load. It is common in bench power supplies, battery charging systems, and LED drivers. Understanding how CV and CC interact helps prevent stress, overheating, and device failure during testing or operation.

📊 Operating Mode Comparison Table

Aspect	Constant Voltage (CV)	Constant Current (CC)
What Stays Constant	Output voltage	Output current
What Varies	Output current (with load changes)	Output voltage (with load changes)
Primary Control Parameter	Voltage setpoint	Current setpoint
Limiting Factor	Current limit	Voltage limit
Common Applications	Electronic circuits, devices	LEDs, battery charging, electroplating
Regulation Specification	Voltage regulation (%)	Current regulation (%)
Overload Protection	Current limiting activates	Voltage limiting activates

Single Output vs. Multiple Output DC Power Supplies

It is important to understand the difference between single output DC power supplies and multiple output DC power supplies. Each type serves a different need in a power system. A single output power supply provides one regulated DC output voltage. It is simple, easy to set up, and often used in basic testing or to power one device. A multiple output power supply offers two or more isolated or non-isolated output channels. This allows one unit to power several circuits at different voltage levels, such as 3.3V, 5V, and 12V at the same time.

Your choice affects system efficiency, wiring layout, cost, and overall performance. Some designs benefit from separate rails. Others work fine with one stable output. Understanding how these two DC power supply types compare helps you choose the right setup for your application.

Benefits of Single Output Designs

Single output power supplies give you one output voltage at a time. They’re great for specific tasks where only one voltage is needed. These supplies are simple and reliable. They have fewer parts, which means they can last longer without breaking down. This makes them perfect for systems where you can’t afford to lose power. They’re also very efficient. Because they’re made to work at a specific output current and voltage, they use less energy. This means they produce less heat and save you money over time. Single output designs also regulate

voltage well. They keep the voltage stable, even when the load changes. This is important for keeping sensitive equipment running smoothly. Many models let you adjust the output range within a single voltage class. Another plus is that they’re often cheaper. Without the extra circuitry for multiple outputs, manufacturers can make them more affordably without sacrificing quality.

Advantages of Multiple Output Configurations

Multiple output supplies give you two or more DC outputs from one unit, at different voltages. This makes them great for complex systems that need different power levels. They save space. Instead of having several power supplies, you can have one multiple output supply that fits in a smaller area. This is a big plus for systems that are tight on space. They can also save you money. While a multi range supply might cost more upfront, it’s cheaper than buying separate supplies for each voltage. This is really true for systems that need three or more

voltages. They make wiring and setup easier. With fewer units to deal with, installation and troubleshooting are simpler. This makes maintenance easier too. Many multiple output supplies let you regulate each output voltage independently. This means you can adjust one output without affecting the others. This is super helpful for systems with different voltage needs.

DC Power Supply Applications in Various Industries

Worldwide, industries rely on DC power supplies for their electronic devices and systems. These power units are key in sectors needing precision, reliability, and consistent performance. They power everything from testing equipment to life-saving medical devices, making them crucial in today’s tech world. Here are some ways in which DC power supply helps in various industries.

The Different Industries & DC Requirements

In today’s electrified landscape, the role of the DC power supply is far more than just a bench tool—it’s the quiet powerhouse fueling everything from precision electronic devices in medical labs to the robust power converters embedded in automotive and aerospace systems. Understanding the nuanced DC requirements across different industries reveals just how engineered and purposeful each power supply design must be. In sectors like telecommunications, for example, regulated power supplies with constant output voltage are

critical for ensuring uptime in remote base stations, while industrial automation relies on switching dc power supplies to manage variable loads with minimal loss. Meanwhile, linear power supplies offer the stable direct current needed in sensitive electronic equipment like spectrometers or MRI machines, where ripple and noise can be catastrophic. The diversity of dc voltage and output current demands—from solar cells to programmable supply units in R&D labs—requires engineers to choose between unregulated power supplies,

constant current power supplies, or even multi range supply configurations, depending on output voltage, voltage regulation, and the input voltage available from the ac mains voltage or three phase power infrastructure. This industrial matrix of dc power supplies isn’t just about voltage and current—it’s about tailoring the exact power source to match a unique operational footprint, achieving safe, consistent, and efficient power distribution in an increasingly complex electrical world where current flows with intent and

precision in only one direction.

Choosing the right DC power supply starts with understanding both the technical specifications and your real-world application requirements. You need to match the correct output voltage, output current, and total power rating to your equipment. It also helps to check key details like efficiency, voltage regulation, current limiting, and built-in protection features. These factors affect safety, heat, and long-term reliability. When you choose wisely, your system runs stable and clean. You avoid wasted energy, reduce stress on components, and prevent costly failures. This guide will help you compare specs and practical needs so you can select the right DC power supply with confidence.

Common DC Power Supply Problems and Troubleshooting

Fixing DC power supply issues can save you time and money. It also prevents damage to your electronic devices. Start by checking the power supply before replacing expensive parts. A step-by-step approach helps identify and solve problems safely and efficiently.

Identifying Output Voltage Issues

Incorrect output voltage is a common problem. If your electronic equipment acts strangely or won’t turn on, check the DC output first. Look out for these signs of voltage trouble:

These steps cover both dc power supply and ac dc power supply types, including unregulated power supplies, linear, and switched-mode power supplies, focusing on output voltage, constant current, and constant voltage operation. They’ll help you detect issues like voltage output ripple, sag, and component failure.

Dealing with Overheating and Thermal Problems

Too much heat can destroy a power converter. It causes parts to fail early and can be dangerous. Watch for these signs of overheating:

These strategies cover a wide range of power supply types (from unregulated power supply to programmable supply, solar cells, dc dc converter, or multi range supply), helping you maintain thermal management, protect electronic equipment, and ensure continuous power distribution and electrical engineering reliability.

Resolving Noise and Interference Concerns

Electrical noise can harm sensitive equipment, even with normal voltage. Power converters, like switching types, can cause ripple and interference. To solve noise problems:

Good shielding and cable management help reduce interference. For critical needs, choose power converters with better filtering. Sometimes, just moving equipment away from noise sources helps.

Alternative DC Power Sources: Beyond Traditional Supplies

As global energy demands evolve and efficiency becomes paramount, alternative DC power sources are emerging as viable solutions beyond conventional dc power supplies. While many still rely on a traditional dc power supply—which delivers direct current (DC) where current flows in one direction—modern systems are increasingly leveraging options like solar cells, dc dc converters, and advanced power converters to meet diverse requirements. Understanding what is a DC supply now goes far beyond bench-top power supplies;

today’s innovations include off-grid dc electricity systems, renewable power sources, and battery-backed regulated power supplies that ensure constant output voltage and constant output current across varied load conditions. These alternatives reduce reliance on ac mains voltage and the conventional power grid, enabling more resilient, decentralized power distribution. Whether integrated with programmable supply units for testing electronic equipment, or used in microgrids that combine switching power supplies, solar arrays,

and ac dc power supplies, these new solutions offer stable dc output, improved voltage regulation, and optimized power consumption. Engineers are also turning to switched mode power supplies, multi range supply options, and hybrid ac power/dc power systems to enhance flexibility, especially in remote or renewable settings. These approaches not only deliver consistent dc voltage and meet demanding output current thresholds but also help manage electrical energy more sustainably—paving the way for the best DC power

supply strategies in future electrical engineering and power transmission infrastructures.

Solar Cells and Renewable Energy Options

Solar cells are a top choice for renewable energy. They turn sunlight into electrical energy without any moving parts or emissions. This makes them great for those who care about the environment. Solar power systems work well in places far from the power grid. They use sunlight as fuel, which is endless. Today’s solar tech is much better, with some panels now over 20% efficient. Other renewable DC power sources include:

Batteries and Energy Storage Solutions

Batteries are key for both power and storing energy in DC systems. They range from old-school lead-acid to new lithium tech. These solutions offer portable and backup power where it’s needed. New battery chemistry has changed the game for DC power. Modern lithium-ion batteries are much better than old lead-acid ones. New tech like solid-state batteries could bring even more improvements. Often work with renewable sources in hybrid power systems. These systems provide steady power, no matter the weather. They switch between

charging and using power to keep things running smoothly.

DC-DC Converters and Power Management

DC-DC converters change one DC voltage to another. This lets systems use power in flexible ways without going back to AC. There are different types:

Advanced power management systems use these converters with smart controls. They make sure energy is used well. They can use renewable sources first, then switch to batteries when needed. By mixing different DC power sources with smart management, systems today are more efficient, reliable, and green.

Future Trends in DC Power Supply Technology

The future of DC power supply technology is exciting. It’s all about making things more efficient, smaller, and smarter. As industries need more from their power systems, manufacturers are coming up with new solutions. These changes are not just about technology; they solve real problems in power management and electrical design. Below we list the future trends of DC power supply technology

Conclusion: Harnessing the Power of DC Supply in Your Projects

In this guide, we’ve looked at dc power supplies and their key role in today’s tech. These devices change electrical energy into the direct current needed by your gadgets. This ensures they work safely and well. When picking a power supply for your project, first figure out your voltage and current needs. The right dc power source keeps your gear safe and works well. It does this by controlling voltage well. It’s also key to match your power supply to your project. This is true for electronics testing, telecom, healthcare, or cars. The right dc power

setup can mean the difference between success and failure. As tech gets better, so do dc power supplies. They’re getting smaller, more efficient, and smarter. This opens up new chances for your projects. Now you know the basics of dc power supplies. This knowledge helps you choose the right one for your needs. Remember, a good dc power supply is the base of all electronic systems. Choosing wisely means better reliability, performance, and life for your devices.

Summary

A DC power supply is a vital device that delivers direct current (DC) to power a wide range of electronic and electrical equipment. Unlike alternating current (AC), DC flows in a single direction, offering stable and predictable voltage output essential for modern electronic devices. This blog explores the fundamentals of DC power supplies, highlighting key components such as input voltage, output voltage, and voltage regulation. It breaks down various types, including linear, switching, regulated, and unregulated power supplies—each

serving specific functions depending on the application’s needs. The blog also delves into how DC power supports constant voltage and current operations in fields like telecommunications, industrial automation, and renewable energy systems. Key selection factors such as voltage range, current capacity, and regulation quality are outlined to guide users in choosing the best DC power supply. Finally, it touches on emerging innovations in DC technology, including programmable supplies and their role in renewable energy and smart

grid development. This comprehensive look at DC power supplies reveals their indispensable role in powering the electronic world.

FAQ

Futher Resources For More Reading
